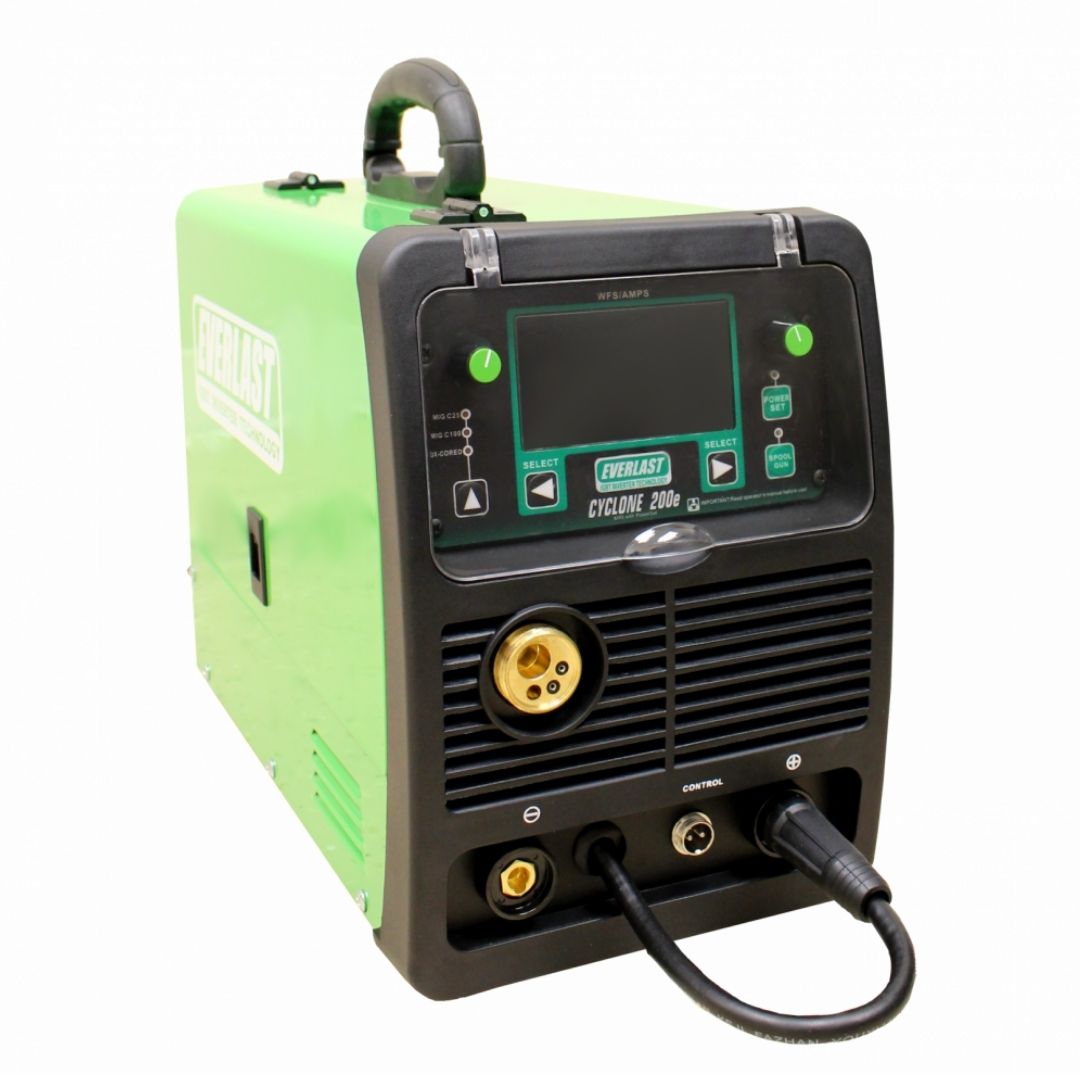

MIG CYCLONE 200ES
The CYCLONE 200ESis state-of-the-art for welding MIG steels. The machine is suitable for both enthusiasts and demanding professional welders. Reliability is top notch.
*Standard 15 series Mig burner. Standard feed roller: V 0.6 – 0.8
*Digital IGBT inverter with technology
*Bright digital LCD display
*PowerSet function, only the wire thickness and material thickness need be specified for correct adjustments.
*15 series Mig burner.
*Simple easy settings
*Minor splash
*180A MIG with 25% burn time
*200 Max amps
*Burn time / Overcurrent protection (Auto-stop)
*Spool gun opportunity
* 1-phase 240V
* The weight of the machine is 13.5 kg
*Dimensions: 45.5 cm × 22.5 cm × 33 cm
Attention buyer!!
USA and Europe packaging is slightly different!!
The European package does not include the throttle.
€1.032,00 inc. VAT
Stock level:
in stock
Warranty: 2 years
TECHNICAL DATA
DESCRIPTION
The Cyclone 200E has been designed with simplicity of use in mind. The new Powerset mode eliminates the guess work required when setting up the machine. No longer do you need to refer to charts, apps, or need years of experience to set the unit up. It simply does it for you. All you need to know is the gas type, wire diameter and metal thickness that you are welding. Select that on the front panel, and you have instant settings that give you a workable setting. Now, with that said, you won’t feel limited by that setting, if you need to make adjustments. The unit allows plenty of adjustment room, without letting you go too far off track. If you are a seasoned professional, of course, the unit also has a manual mode. This unit has “economy” in mind as it offers just the MIG process with 180A of output at 25% duty cycle. This is more than enough for your small garage or shop, and still as good as or better than the duty cycle of many other 200A class welders on the market. With Dual voltage operation capability, the small frame of the Cyclone 200E allows you to be completely portable and weld up to 125A on 230V output
DOWNLOADS
PRODUCT NOTES
If operating with a generator, use a generator rated for at least 7000 surge watts. Make sure that it is certified by the generator manufacturer to produce “clean power”. The threshold for clean power is typically <5% THD (Total Harmonic Distortion). Operating on non clean power generators, poor sources of power, including under/over voltage (10% over/under voltage) or extension power cords that are undersized will void the warranty.
If welding aluminum, you must use 0.9 mm diameter wire for best results with main gun, U groove drive rolls (optional) and polymer liner (optional) or spool gun. Recommend spool gun is SM100(optional).
MINIMUM/MAXIMUM
Minimum/Maximum:
* Weld up to a maximum of 2.5 mm Steel/Stainless single pass weld* 240V
* Weld up to a maximum of 7.6 mm Steel/Stainless multiple pass weld 240V
* Weld a minimum of 24 gauge Steel/Stainless 240V
* Purchase the SM100N gun to weld Aluminum or purchase a 0.9 /1.0 mm 1 piece drive roll kit to weld aluminum along with a polymer liner for the standard 3 m gun.
