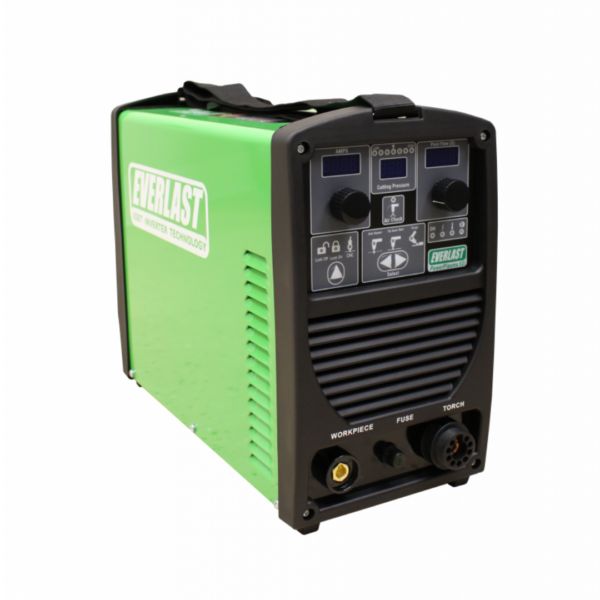

POWERPLASMA 52I – New!

CC
Screen Shot 2020-06-03 at 09.44.54
Plasma
Pilot

For customers looking for a compact, but reliable plasma cutter, the PowerPlasma 52i offers the latest in IGBT inverter design technology.  The PowerPlasma 52i is the successor to the popular and long running PowerPlasma 50S series which brought affordability and performance to the plasma cutter market place and gave customers a real choice.  Nothing has changed in that respect about the new PowerPlasma 52i.   The new PowerPlasma 52i has been completely redesigned though, offering full digital design, inside and out.  This has reduced circuit complexity, and improved reliability.    But it has also brought some new features which improve upon the solid platform of the PowerPlasma Series.   The new addition of the air-pressure guide system, offers digital display of actual air-pressure along with a LED system that guides the operator to the best choice of air pressure for the mode being used.   This new setup also features a digital control over Post-Flow and gives the user the ability to see and set the actual post flow time with a digital readout. It can be adjusted for different duty and job requirements. The Post-Flow can be easily increased to preserve consumable life for those long, time consuming cuts.  Or if you are doing rapid, short, or intermittent cuts, the Post-Flow time can be adjusted lower by just a quick twist of the dial.  The large digital displays are super bright, with improved visibility in bright conditions, making them easy to read at a distance.  Adding to the already long list of improvements, the PowerPlasma 52i, now has a gouge feature and a separate mode for CNC use.  The blow-back torch design features two pilot arc modes, one with continuous re-light for cutting expanded metal and for conditions where continuity is not ideal, and the other which features a tip saver function that limits pilot arc on time to preserve consumable life.

996,00 inc. VAT

Stock level:

In stock

TECHNICAL DATA

Type: IGBT
Voltage/phase:
1 Phase 240 V
Duty Cycle At Rated Amps:
50A max 60%
Cutting capacity:
Recommended 10 mm, max ~ 16 mm steel
Arc Start Type:
Blow Back (Piston type)
PilotArc:
Yes
CNC Interface Port:
Yes
Adjustable Post Flow Timer:
Yes
Torch Type:
Italian designed iPT 60
Recommended Cutting Air Pressure:
100L /min 4,5 – 5 bar
OK-to-Cut Indicator/Low Air pressure safety:
Yes
Dimensions:
41 cm × 18 cm × 33 cm
Weight:
19 kg

DESCRIPTION

Features & Benefits:
Adjustable Post-Flow timer extends consumable and torch life
Large, Super bright digital displays for Amps, Air Pressure, and Post Flow
Digital Air Pressure Setting Guide adapts programming for different cutting modes
Separate Gouge and CNC modes.
Euro style “Central” quick connect torch adapter
Improved Consumable life
Features the Italian designed “back striking” iPT 60 torch with improved cutting capacity and improved consumable life
Inexpensive consumables can usually be bought locally
60% duty cycle is fit for commercial use
Clean cuts and less bevel with the iPT 60 torch and new digitally controlled cutting arc.
Self-Diagnosing mode (Error Code)
Consumables in Place Indicator.
Pilot arc tip saver feature limits pilot arc activity to 3 seconds. Continuous Pilot arc mode is standard as well.
Can be used with 8500 watt clean power generators (less than 5% total harmonic distortion)

Recommended Areas of Use:
Home/Hobby
Metal Art
Farm/Ranch
Contstruction sites
Portable Repair
Fabrication
Anywhere Oxy Fuel cutting is impractical, slow, expensive, or otherwise restricted or undesirable.
Recommended Metals:
Steel
Stainless
Aluminum
Titanium
Virtually all types of metal

DOWNLOADS

User manual

PRODUCT NOTES

Notes:
When using the CNC port, with a plasma table, the unit should be limited to 40 amps which is the 100% duty cycle level of the machine if it is to be used continuously.
A separate air dryer must be provided by the customer to prevent torch damage, and excessive consumable wear.
The unit includes a regulator/water trap, but is not designed to remove all water or moisture.
When used with a generator, the generator must be certified by its manufacturer to produce “clean” power (5% or less THD). Use a generator rated for 8500 surge watts if used on 240V. Lowering air pressure will destabilize the arc.

MINIMUM/MAXIMUM

Plasma cutting capacity is affected by several factors. Ideal cutting conditions require dry air, new consumables, proper air pressure etc. Quality of cut depends upon consumable orifice size, standoff height, and travel speed. Reduce consumable orifice size for best quality cuts on thin metals. Units are shipped with starter kit of consumables designed for 40-50 amps cutting range. Minimum cutting gauge is virtually unlimited, but kerf will be too wide if standard cutting tips are used. For best results, use a smaller diameter orifice for lighter gauges.
