POWERPRO 205SI

Screenshot 2020-05-07 at 14.12.10
Screenshot 2020-05-07 at 14.12.21
High-output
Pilot

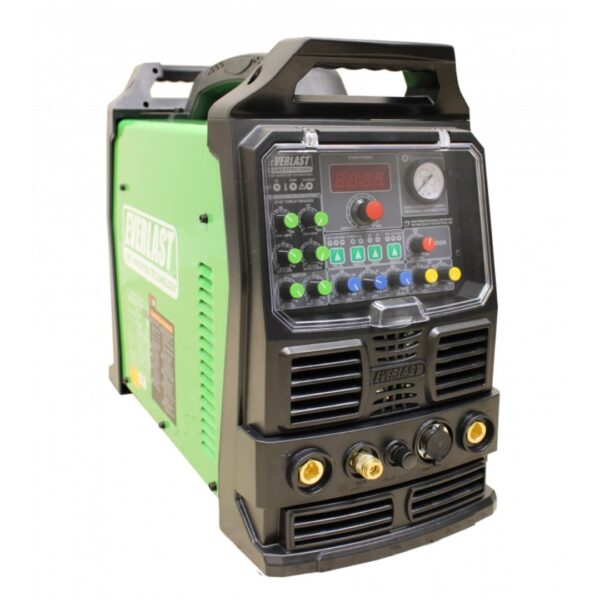

The Power PRO 205Si is an AC/DC tig and 50A plasma cutter.

1 phase 230V.

All in one!  Good welder with extra features!

The Power PRO 205Si is a top-equipped AC/DC tig for welding both steels and aluminum. The machine also has a 50A plasma cutter that uses the same IGBT power electronics as the TIG.

The power of the plasma cutter is perfectly sufficient for ~ 10mm steel and a maximum of ~ 16mm.

The machine is suitable for both enthusiasts and demanding professional welders. Reliability is top notch.

With gas-cooled WP26 tig burner as standard.

The PowerPRO 205Si multi-unit is definitely the utility player in Everlast’s lineup and is ready to go to work anywhere it is needed. This device is well suited for small workshops where there is a less of space.

Attention buyer!!
USA and Europe packaging is slightly different!!
European packaging includes: gas-cooled tig torch with consumables, electrode holder,  ground clamp and plasma torch.

1.719,00 1.375,00 inc. VAT

Stock level:

in stock

Warranty: 2 years

TECHNICAL DATA

IGBT Inverter Type:  IGBT
Voltage/phase:  240 V 1 Phase
TIG output type:  AC/DC
TIG Start Type:  High Frequency Only
Pulse:  Yes, Adjustable
Plasma Cutter Arc Start Type:  Blow Back (Piston type)
PilotArc:  Yes
OK-to-Cut Indicator/Low Air pressure safety:  Yes
AC Frequency:  20-250Hz
AC Balance (cleaning):  10-90%
OCV:  85V TIG/Stick, 250V Plasma
Max Inrush ( I1MAX ) Amps:  30A
Maximum Rated (I1EFF ) Input Amps:  24A
TIG Output Amps/Volts @ Rated Duty Cycle:
  • 200A/18V @ 60% Duty Cycle
  • 160A/16.4V @ 100% Duty Cycle
Stick Output Amps/Volts @ Rated Duty Cycle:
  • 160A/26.4V @ 35% Duty Cycle
  • 130A/25.2V @ 60% Duty Cycle
  • 100A/ 24V @ 100% Duty Cycle
Plasma Output Amps/Volts @ Rated Duty Cycle:
  • 50A/100V @ 35% Duty Cycle
  • 40A/96V @ 60% Duty Cycle
  • 30A/92V @ 100% Duty Cycle
TIG AC Amp/Volt Range:  20A-200A; 10.8V-18V
TIG DC Amp/Volt Range:  5A-200A; 10.2V-18V
Stick Amp/Volt Range:  5A-160A; 20.2V-26.4V
Plasma Amp/Volt Range:  20A-50A; 88V-100V
Start Amps:
  • DC: 5A-200A
  • AC: 20A-200A
End Amps:
  • DC: 5A-200A
  • AC: 20-200A
Down Slope Time:  0-25 Seconds
Up Slope Time:  0-10 Seconds
Preflow time:  0-10 Seconds
Post Flow Time:  0-25 Seconds
OverCurrent Protection:  Yes
Duty Cycle Protection:  Yes
Air Pressure OK Safety Indicator:  Yes
TIG Pulse Frequency:  .5-250 Hz
TIG Pulse Time On:  10-90%
TIG Pulse Amp Range:  5-95%
Stick Arc Force Control:  Yes, 10-100%
Torch Type:  PT/iPT 60

DESCRIPTION

  • All-in-one portability
  • Compact IGBT Inverter design and low power consumption is ideal for portable use
  • Compact, yet powerful TIG welding/Plasma cutting features
  • Easy to use controls with simple selector switch for process changeover
  • Quick change out of torches for easy change from TIG to plasma back to TIG
  • Good duty cycle ratings for TIG, Stick, and Plasma
  • Duty Cycle indicator warns when thermal threshold has been exceeded and interrupts welding/cutting output until condition is resolved
  • Over Current indicator warns when duty cycle has been exceeded and interrupts welding/cutting output until condition is resolved
  • OK to cut indicator lights up when air pressure meets minimum required operating pressure and interrupts cutting output when air pressure is too low
  • Low dross cuts on steel up to 5/8″ with up to 3/4″ maximum capacity (under ideal conditions)
  • Exceptional arc stability for TIG/Stick functions

DOWNLOADS

PRODUCT NOTES

This unit is not designed or intended for Industrial fabrication or production welding. It is not designed for CNC use or for production plasma cutting.

If used with a generator, the generator must be rated by its manufacturer as “clean power” which is 5% or less THD.  Use with generators that are rated for 9000 watts or greater for best operation.

MINIMUM/MAXIMUM

TIG single pass capability

  • Steel: 36 ga. – 3/8″
  • Aluminum: 24 ga. – 1/4″

Stick electrode diameter capability

  • 1/16″-1/8″

Plasma Cutting capability* (with dry air, new consumables, proper air pressure etc.)

  • up to 1/2″ daily use @ 15-20 ipm
  • up to 5/8″ clean cut @ 8-12 ipm
  • up to 3/4″ severance cut @ 3-5 ipm

*Quality and capacity of cut depends upon consumable orifice size, standoff height, travel speed, etc.
