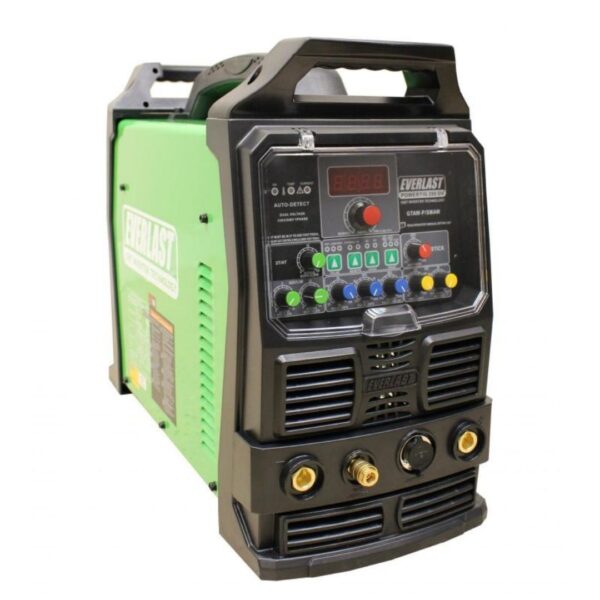

POWERTIG 200DV

ACDC-CC
HIGH-IGPT
PULSE-MMA
TIG

The Power TIG 200DV is basic equipped with an AC / DC tig for welding both steels and aluminum. The machine is suitable for both enthusiasts and demanding professional welders. Reliability is top notch.

With gas-cooled WP26 burner as standard.

For professional use, we have equipped the machines with high-quality Tafimet burners, so that the package satisfies even the most demanding taste.

Attention buyer!!
USA and Europe packaging is slightly different!!
European packaging includes: gas-cooled tig torch with consumables, electrode holder and ground clamp.

1.329,00 inc. VAT

Stock level:

In stock

Warranty: 2 years

TECHNICAL DATA

IGBT Type:  Individual IGBT
Inverter Type:  Digital/Micro-controlled
Output Type:  AC/DC TIG, DC Stick
Voltage/phase:  240V  1 PHASE
Max Rated TIG Amps:  240V: 200 Amps
Max Rated Stick Amps:  240V: 160A
TIG Amps @ Rated Duty Cycle:  240V
  • 200A/18V @ 60% Duty Cycle/ 40º C
  • 160A/16.4V @ 100% Duty Cycle/ 40º C

Stick Amps @ Rated Duty Cycle:  240V

  • 160A/26.4V @ 35% Duty Cycle/ 40º C
  • 130A/25.2V @ 60% Duty Cycle/ 40º C
  • 100A/24V @ 100% Duty Cycle/ 40º C

Max Inrush ( I1MAX ) Amps:  240V: 31A

Maximum Rated (I1EFF ) Input Amps:  240V: 23A

OCV:
  • TIG: 68V
  • Stick: 68V
TIG Output Range DC:  240V: 5A-200A/10.2V-18V
TIG Output Range AC:   240V: 20A-200A/10.8V-18V
Stick Ouput Range DC:  240V: 5A-160A/20.2V-26.4V
Stick Function:  Adjustable Arc Force Control
Stick Hot Start Type:  Auto Adaptive Hot Start
6010/Cellulose Capable:  Limited to 6011
Minimum Amp DC TIG Start:  5A
Minimum Amp AC TIG Start:  20A
TIG Start Type:
  • HF
  • Lift TIG
TIG Start Type:  HF and Lift Start
Memory:  No
End Amp Range:  Fixed Minimum
Upslope Time:  Fixed, Minimum
Down Slope Time:  0-25 Seconds
Preflow time:  0-10 Seconds
Post Flow Time:  0-25 Seconds
TIG Pulse:  Yes
Standard DC Pulse Frequency:  .5-150Hz
Standard AC Pulse Frequency:  .5-150Hz
Pulse Time On (Duty Cycle):  0-90%
Pulse Amp Range:  5-95% of welding amps
AC Frequency (Hz):  20-250Hz
AC Balance Range:  30-70% of Electrode Positive
AC Wave Forms:  Advanced Square Wave
Remote Control:  2T/4T
Weight: 25 kg
Dimensions: 63 cm × 24 cm × 38 cm

DESCRIPTION

As the latest addition to the analog line of inverter TIG welders from Everlast, the PowerTIG 200DV features all of the same dynamic performance of the PowerTIG 200DX, but expands its versatility by adding dual voltage and a digitally controlled IGBT inverter.  Able to operate on 240V single phase 50/60Hz, the unit offers maximum go anywhere performance.  The unit is definitely portable, and can be used with any generator that is rated for 9000W (240V) surge watts and is certified by the manufacturer as “clean power”.   If you need a  reliable, TIG welder that you can carry with you and make quality welds day-in and day-out, the PowerTIG 200DV is definitely one to consider.

DOWNLOADS

PRODUCT NOTES

Use only with generators certified by the manufacturer as “clean power”. Use with clean power generators rated for at least 8500 Surge Watts.

MINIMUM/MAXIMUM

TIG:

  • Weld steel to a maximum of 5/16″ single pass (240V)
  • Weld steel to a maximum of 1/2″ multi-pass(240V)
  • Weld aluminum to a maximum of 1/4″ single pass (240V)
  • Weld aluminum to a maximum of 3/8″ multi-pass (240V)
  • Weld to a minimum of .007″ Steel
  • Weld to a minimum of .020″ Aluminum

Stick:

  • Weld with a minimum of 1/16″ diameter electrode
  • Weld with a maximum of 1/8″ diameter electrode (240V)
  • Not Rated for E6010 Use

TIG limits are recommended based off of practical limits and industry recommended standards for single and multi-pass welds.

Stick min/mas recommendations are general and may vary between manufacturers and electrode types.
