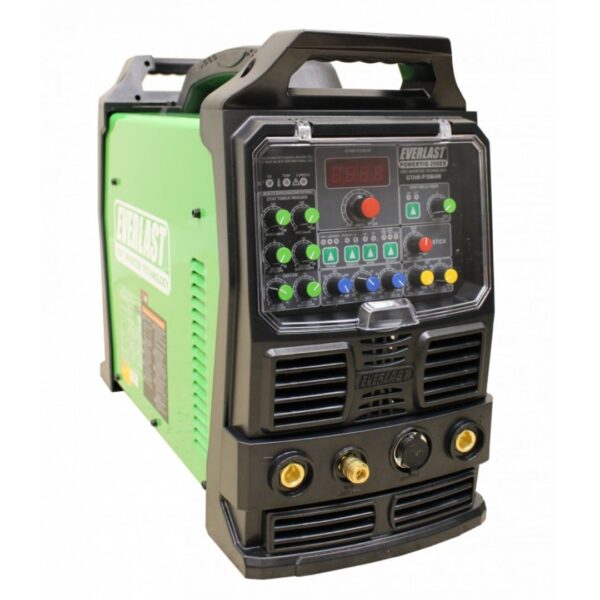

POWERTIG 250EX
The Power TIG 250EX is a top-equipped AC / DC tig for welding both steels and aluminum. The machine is suitable for both enthusiasts and demanding professional welders. Reliability is top notch.
For professional use, we have equipped the machines with high-quality Tafimet burners, so that the package satisfies even the most demanding taste.
• Pulse: More penetration, less heat to the part.
Even thin materials can be welded without burning the puncture.
With water-cooled WP18 burner as standard.
Attention buyer!!
USA and Europe packaging is slightly different!!
European packaging includes: water-cooled tig torch with consumables, electrode holder and ground clamp.
€1.849,00 inc. VAT
Stock level:
In stock
Warranty: 2 years
TECHNICAL DATA
IGBT Type: Module IGBT
Inverter Type: Digital/Micro-controlled
Output Type: AC/DC TIG, DC Stick
Voltage/phase: 3 PHASE 400V
Max Rated TIG Amps: 250A
Max Rated Stick Amps: 200A
TIG Amps @ Rated Duty Cycle:
250A/20V @ 60% Duty Cycle/ 40º C
200A/18V @ 100% Duty Cycle/ 40º C
Stick Amps @ Rated Duty Cycle:
200A/28V @ 35% Duty Cycle/ 40º C
160A/26.4V @ 60% Duty Cycle/ 40º C
130A/ 25.2V @ 100% Duty Cycle/ 40º C
Max Inrush ( I1MAX ) Amps:
220V (3): 21A
Maximum Rated (I1EFF ) Input Amps:
220V (3): 16A
OCV:
TIG: 80V
Stick: 80V
TIG Output Range DC:
5A-250A/ 10.2V-20V
TIG Output Range AC:
5A-250A/ 10.2V-20V
Stick Ouput Range DC:
5A-200A/ 20.2V-28V
Stick Hot Start Amps:
Auto regulated
Stick Function: Adjustable Arc Force Control
Stick Hot Start Type: Auto Adaptive Hot Start
6010/Cellulose Capable: Limited to 6011
Minimum Amp DC TIG Start: 5A (+/-2A)
Minimum Amp AC TIG Start: 5A (+/-2A)
TIG Start Type: HF
Lift TIG
TIG Start Type: HF and Lift Start
Memory: No
Start Amp Range: 5A-250A
End Amp Range: 5A-250A
Upslope Time: 0-10 Seconds
Down Slope Time: 0-25 Seconds
Preflow time: 0-10 Seconds
Post Flow Time: 0-25 Seconds
TIG Pulse: Yes
Standard DC Pulse Frequency: .5-500Hz
Standard AC Pulse Frequency: .5-500Hz
Pulse Time On (Duty Cycle): 10-90%
Pulse Amp Range: 5-95% of welding amps
AC Frequency (Hz): 20-250Hz
AC Balance Range: 10-90% of Electrode Positive
AC Wave Forms: Advanced Square Wave
DESCRIPTION
Equally suitable for both the welding enthusiast and the professional that is in need of a well equipped AC/DC TIG welder, the Everlast PowerTIG 250EX is a versatile solution. Feature for feature though, it delivers as well. The unit is equipped with items like fully adjustable pulse, AC frequency, AC balance control, stick function with arc force control, and 2T/4T remote control functions. It even includes a spot weld timer for those needing to make routine, perfectly timed spot welds on sheet metal. The IGBT inverter module reduces size and weight of the unit and keeps it portable. The welder will operate efficiently on both 240V single phase, and 240V 3 phase power. For those needing to weld thin gauge material, the unit features low amp start capability in both AC and DC modes, down to 5 amps. The PowerTIG 250EX has built a name for itself in the industry as a capable and economical welder and the latest generation continues that legacy.
- Fabrication/Production welding
- Motorsports/Offroad
- General automotive use
- Prototyping
- Shipyards
- Pipelines
- Farm/Ranch
- Industrial maintenance
- Gun Smithing
- Hobby/DIY
DOWNLOADS
PRODUCT NOTES
The unit is not recommended for E6010 use. Recommend using E6011 instead.
If you plan on using this unit on a generator, the generator must be certified as producing “Clean Power” by the generator’s manfacturer. Everlast does not maintain a list of “approved” generators. The manufacturer of the generator should be able to supply information about the Total Harmonic Distortion (THD). THD should be 5% or less.
For operation on a generator, a Minimum of 10, 500 surge watts is recommended.
MINIMUM/MAXIMUM
TIG:
- Weld steel to a maximum of 1/2″ single pass
- Weld steel to a maximum of 1+” multi-pass
- Weld aluminum to a maximum of 1/2″ single pass
- Weld aluminum to a maximum of 1+” multi-pass
- Weld to a minimum of .007″ Steel
- Weld to a minimum of .008″ Aluminum
Stick:
- Weld with a minimum of 1/16″ diameter electrode
- Weld with a maximum of 3/16″ diameter electrode
